| Type de paiement: | T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Quantité de commande minimum: | 1 |
| transport: | Ocean,Land,Air |
| Hafen: | ningbo,qingdao,shanghai |

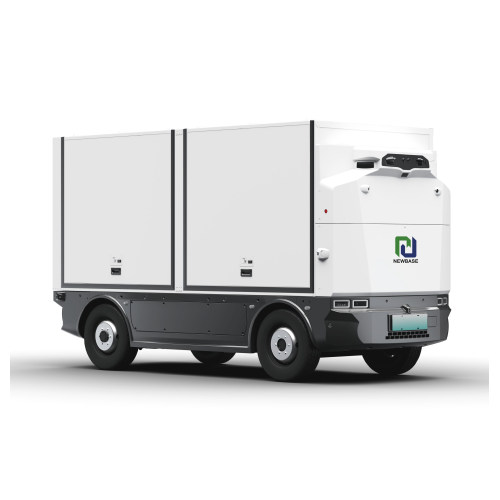

Modèle: Model Z8 (2025) three flying wing version
marque: Nouvelle base
Lieu D'origine: Chine
Cargo Box Volume: 8m³
Load Capacity: 1500kg
Maximum Range When Empty: 210km
Comprehensive Urban Range: 150km
Dimensions (mm): 4008*1648*2300
Minimum Ground Clearance (mm): 154
Maximum Wading Depth (mm): 380
Minimum Turning Radius (m): 5.4
Maximum Climbing Angle: 20%（11.3°)
Speed (km/h): 55
Température De Fonctionnement (℃): -30~60
Note étanche: Ip55
Maximum Range (km) When Unloaded: 210/260
Urban Comprehensive Range (km): 150/190
Load Capacity (kg): 1500/1400
Couleur Corporelle: Blanc Mer Etoile / Bleu Glacier
Type De Verrouillage: Serrure électrique intelligente de qualité automobile
Type De Batterie: phosphate de fer au lithium
Battery Capacity (kWh): 34.8/46
Temps De Charge (H): Standard : 11,5h/15h En option : 7h/9h/3h/4h
| Type de colis | : | Cartons et caisses en bois |
| Exemple d’image | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Design Highlights | Adaptation Value for SEA |
|---|---|
| Ruggedized Body + Sealed Cargo Compartment |
Body structure resists corrosion (meets IP55+ protection). Ideal for damp, dusty pits in Indonesia’s Grasberg Mine, or humid mine sites in the Philippines’ Benguet province.
|
| "Titan" Heavy-Duty LED Headlights | Enhanced brightness penetrates thick dust in open-pit mines for dawn/dusk transfers, ensuring visibility in low-light or dusty conditions common in Southeast Asian mining. |
| Integrated Dust-Proof Sensor Array |
Equipped with 4 dust-proof solid-state lidars + 13 cameras + millimeter-wave radars.
Flush-mounted design avoids interference from mining debris and uneven roads.
IP55-rated sensors withstand Southeast Asia’s humid rainy seasons and dusty dry seasons.
|
| Reinforced Modular Cargo Box |
High Load-Bearing Capacity: 1400kg payload meets ore/equipment part transport needs, boosting single-trip efficiency.
Dust/Waterproof Sealing: Keeps materials dry during monsoons, protecting metal parts from rust as effectively.
Quick-Access Design: Rear + side doors enable fast loading/unloading even on narrow mining roads (like those in Benguet, Philippines), cutting downtime.
|
| Competitors’ Product Shortcomings in Southeast Asia | Southeast Asian Miners’ Core Pain Points | Newbase Z8 Series Robovan Competitive Edges |
|---|---|---|
| 1. Price: Ultra-high cost (unaffordable for SMB miners in Southeast Asia). 2. Payload: ≤1000kg. 3. Maintenance: Complex structure; imported parts cost >$2k per repair, with long downtime. |
1. High equipment costs force manual transport → low efficiency + safety risks . 2. Low payload → 25% higher operating costs from frequent trips (e.g., Malaysian tin mines in Perak). 3. Expensive/slow repairs → mining halts, monthly loss >$50k. |
1. Cost-Effectiveness: 1400kg payload + IP55 protection, 33% cheaper than mining-specialized brands — affordable for SMBs in Indonesia, Thailand, or the Philippines.
2. Efficiency: 40% more single-trip capacity than locally modified vehicles → 30% lower transport cost.
3. Maintenance: Local parts supply+ simplified structure → repair cost cut by 60%, downtime ≤2 days.
|
Couverture et précision : 300 m avant/arrière + 100 m de portée de détection gauche/droite. Précision de reconnaissance dynamique des obstacles de 99,2 % (identifie les camions miniers, les excavatrices ou les travailleurs dans la poussière/le brouillard à la mine Grasberg) — résout les risques de collision.
Core Tech : Triple fusion (vision binoculaire 3D + lidar anti-poussière + radar à ondes millimétriques) pour une détection d'obstacles à 360°.
Temps de réponse à la décision : 40 ms (3 fois plus rapide que la moyenne du secteur pour les véhicules miniers). La vue à vol d'oiseau BEV + le réseau d'occupation OCC permettent une erreur <10 cm dans la cartographie 3D.
En tant que Vichel de conduite autonome de niveau L4, la conception modulaire du matériel prend en charge un fonctionnement 24h/24 et 7j/7 dans des conditions humides/poussiéreuses (idéal pour l'humidité toute l'année de Sumatra).
Durée de vie du lidar à semi-conducteurs de qualité véhicule : plus de 6 ans (contre 1 à 2 ans pour les concurrents) — réduit les coûts de remplacement à long terme du véhicule de transport sans conducteur Newbase Z8 pour site minier d'Asie du Sud-Est.
| Customer Type | Core Needs | Newbase Z8 Autonomous Mining Transfer Van Solution & ROI |
|---|---|---|
| SMB Mines |
- Low-cost automation to replace manual transport. - 1400kg+ payload for ore/parts. - Low maintenance cost for tight budgets. |
- 33% lower upfront cost vs. imported trucks → enables SMB automation.
- 40% more single-trip capacity → 30% fewer daily trips, $3,000 monthly transport cost savings.
- Local repair support → ≤2 days downtime, avoiding ~$50k monthly loss.
|
| Large-Scale Mining Groups |
- Large fleet operation with unified standards. - High durability for harsh pits. - Fast on-site maintenance for multiple sites. |
- 1400kg uniform payload → standardized ore grading.
- IP55+ protection + 6-year lidar lifespan → 40% less fleet maintenance.
- Regional hubs → on-site support within 24 hours for multi-site fleets.
|
| Service Type | Exclusive Guarantee |
|---|---|
| Warranty Service | 5-year free warranty on core components for Newbase Z8 IP55 Dustproof Waterproof Driverless Logistics Van. Cuts long-term maintenance costs by 60%. |
| Customization Service |
• Cargo Box: Tailored for ore types. (It can also be used in conjunction with Newbase's refrigerated tricycles,Mini Refrigerated Van,Cold Chain Refrigeration Container to provide an integrated logistics solution.)
• Branding: Body logos/custom paint.
• Connectivity: Complimentary 4G/5G data cards (works with Telkomsel, AIS, Smart) for Newbase Z8 1400kg Load Capacity Mine Driverless Van fleet tracking.
|
| After-Sales Rights | • Serious quality issues: full replacement within 30 days. |
